Dust Control Rotary Valve

Solid housing with square and round flange connections.Suitable for feeding bulk materials into pneumatic conveying systems at up to 1.5 barg ( 21 PSl).Normally used in dust collector system.

Email: cemax@cemaxco.com

Whatsapp: +86-18861633716

Dust Control Rotary Valve

FEATURES

· Standard valve manufactured in Stainless steel, cast iron

· Nonstandard valve manufactured in Hastelloy, Nickel Alloy, Titanium material

· ANS1 15O#,DIN PN1O, JIS1OK Drilled flanges in accordance with DIN, ANSI, JIS standardOutboard bearing are standard

· Outboard bearing are standard

· High temperature execution up to 300°℃

· Pressure difference up to 1.5 bar (21PSI)

· Designed accordingly

OPTIONS AND ACCESSORIES

· 6 vanes, 8 vanes, 10 vanes or 12 vanes rotor

· Rotor design: open end, close end, radius pocket and adjustable-tip

· Interior coatings: tungsten, Teflon, ceramic powder, hard chrome

· Packing gland sealing or Air purge shaft sealing

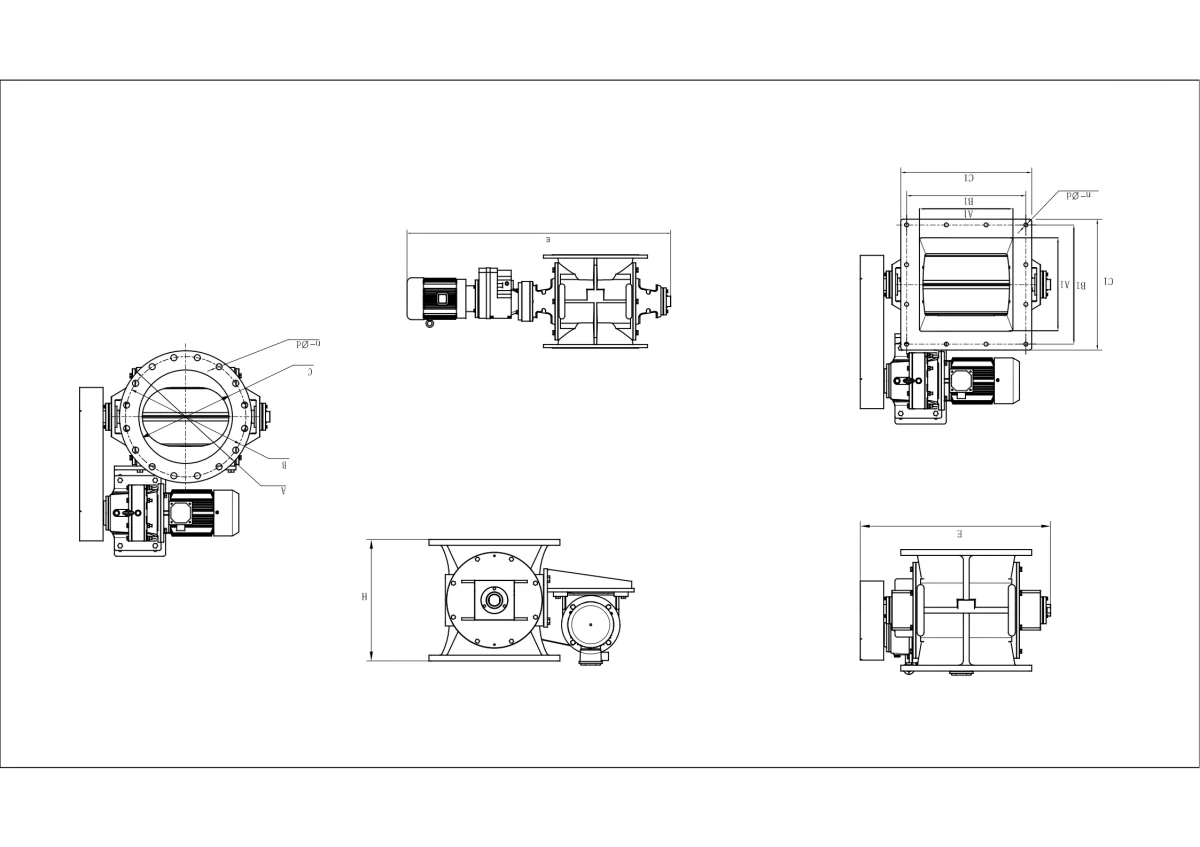

TECHNICAL PARAMETERS

Type	Volume	Installation Dimension									OT	RPM (r/min)	Motor ( KW )	Weight (KG)
Type	L/rpm	ØA	ØB	ØC	A1	B1	C1	H	E	n-Ød	OT	RPM (r/min)	Motor ( KW )	Weight (KG)
CVRD/CVSD	2L	150	200	240/285	150	200	240	240	850	8-Ø11	Outbord≤200℃	24/33/ 40	0.75	50
	4L	180	240	280	180	230	270	280	900				0.75	50
	6L	200	260	300/340	200	250	290	300	930				0.75	60
	8L	220	280	320	220	270	310	320	950				0.75	75
	10L	240	300	340	240	290	330	340	1000	8-Ø13			1.1	90
	12L	250	320	360	250	300	340	320	950	8-Ø17			1.5	105
	14L	280	340	380	280	330	370	380	1050				1.5	140
	16L	300	360	400/445	300	350	400	400	1080				1.5-2.2	180
	18L	320	380	420	320	370	420	420	1100				2.2	250
	20L	340	400	440	340	390	440	440	1150				2.2-3	310
	26L	400	460	500	400	450	510	520	1300	12-Ø17			3	350
	30L	440	500	560	440	495	550	550	1350				3	380
	40L	500	558	620	500	558	620	620	1500				2.2-3	710
	50L	540	600	650	540	600	650	650	1600				3	820
Note: If match special flange, please let us know before production.
