Quick Cleaning Rotary Valve
FEATURES
· Standard valve manufactured in Stainless steel
· ANS1 15O#,DIN PN1O, JIS 10K Drilled flanges in accordance with DIN, ANSI, JIS standard
· Heavy duty side rail assembly
· Twin track linear bearing assembly
· Pressure difference up to 1.5 bar (21PSl)
· Designed accordingly
OPTIONS AND ACCESSORIES
· 6 vanes, 8 vanes, 10 vanes or 12 vanes rotor
· Rotor design: open end, close end, radius pocket and adjustable-tipInterior coatings: tungsten, Teflon, ceramic powder, hard chrome
· Packing gland sealing or Air purge shaft sealing
· Valve housing leakage gas venting
· Accessories: Drop-out box, speed monitor, vent box
TECHNICAL PARAMETERS

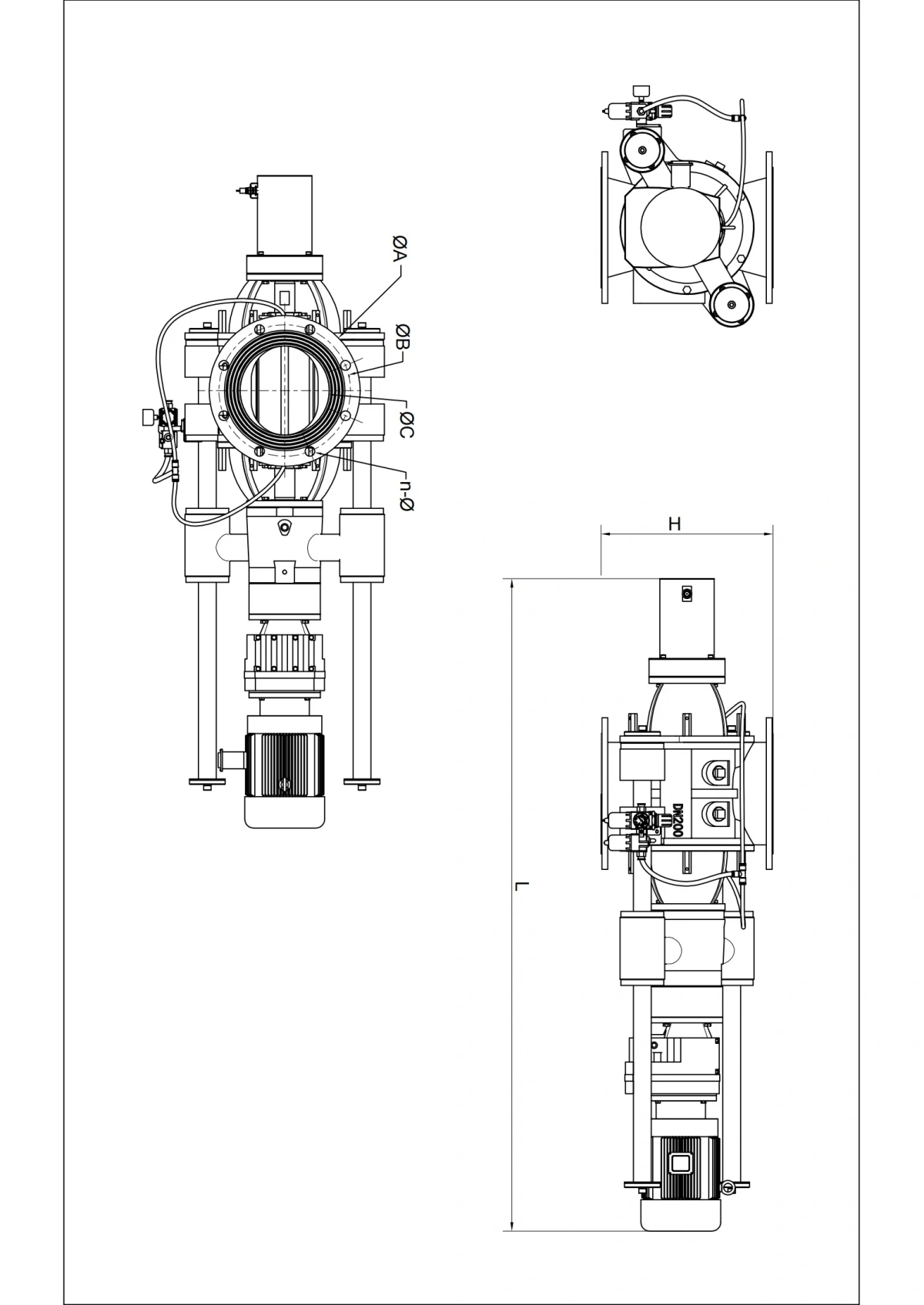

| Type | Volume | Installation Dimension | RPM (r/min) |
Motor ( KW ) |
|||||||
| L/rpm | ØA | ØB | ØC | H | L | M | N | N-Ø | |||
| CVQ- 150 | 4L/r | 150 | 240 | 285 | 330 | / | / | / | 8-Ø22 | 1～24r | 0.75 |
| CVQ- 200 | 8L/r | 200 | 295 | 340 | 385 | / | / | / | 8-Ø22 | 0.75 | |
| CVQ- 250 | 16L/r | 250 | 350 | 395 | 450 | / | / | / | 12-Ø22 | 1.5 | |
| CVQ- 300 | 24L/r | 300 | 400 | 445 | 480 | / | / | / | 12-Ø22 | 1.5 | |
| Note: If match special flange, please let us know before production. | |||||||||||
