Ceramic Liner Rotary Valve
FEATURES
· Standard valve manufactured in Stainless steel
· ANSI 150#,DIN PN10, JIS10K Drilled flanges in accordance with DIN, ANSI, JIS standard
· Maximising valve speed to 25 RPM prolonging life, ensuring good throughput
· Designed accordingly
OPTIONS AND ACCESSORIES
· 6 vanes, 8 vanes, 10 vanes or 12 vanes rotor
· Rotor design: close end, open end, metering endLiner and rotor are ceramic
· Packing gland sealing or Air purge shaft sealing
· Accessories: Drop-out box, speed monitor, vent box
TECHNICAL PARAMETERS

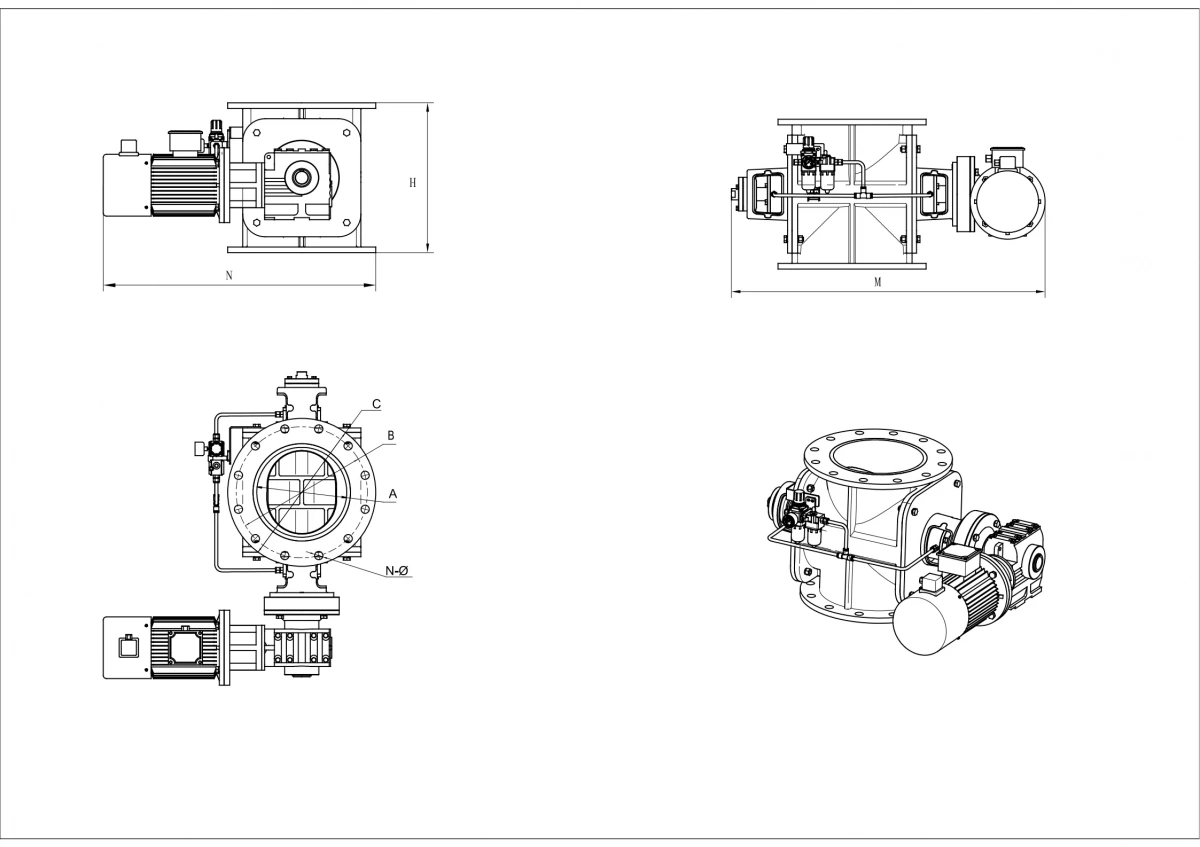

| Type | Volume | Installation Dimension |
RPM (r/min) |
Motor (KW) |
||||||||
| L/rpm | OA | OB | OC | E | F | M | N | H | N- | |||
| CVC-150 | 3L/r | 150 | 240 | 285 | 240 | 580 | 580 | 600 | 300 | 8-022 | 1～24r | 0.75 |
| CVC-200 | 6L/r | 200 | 295 | 340 | 270 | 620 | 620 | 650 | 360 | 8-022 | 0.75 | |
| CVC-250 | 12L/r | 250 | 350 | 395 | 300 | 660 | 680 | 700 | 400 | 12-022 | 1.5 | |
| CVC-300 | 20L/r | 300 | 400 | 445 | 330 | 690 | 720 | 740 | 450 | 12-022 | 1.5 | |
| Note:Non standard flange connection,to confirm with our technical team. | ||||||||||||
