Drop Through Rotary Valve
FEATURES
· Standard valve manufactured in stainless steelcast iron
· Nonstandards valve manufactured in Hastelloy, Nickel Alloy, Titanium material
· Drilled flanges in accordance with DIN,ANSI, JIS standard
· Outboard bearing are standard
· High temperature execution up to 300°C
· 1.5 barg(21PSl) system and diferential pressure
· Designed accordingly
OPTIONS AND ACCESSORIES
· 6 vanes, 8 vane, 10 vanes or 12 vanes rotor
· Rotor design: open end, close end, radius pocket and adjustable-tip
· Interior coatings: tungsten, Teflon, ceramic powder, hard chrome
· Air purge shaft sealing
· Valve housing leakage gas venting
· Accessories: Drop-out box, speed monitor, vent box

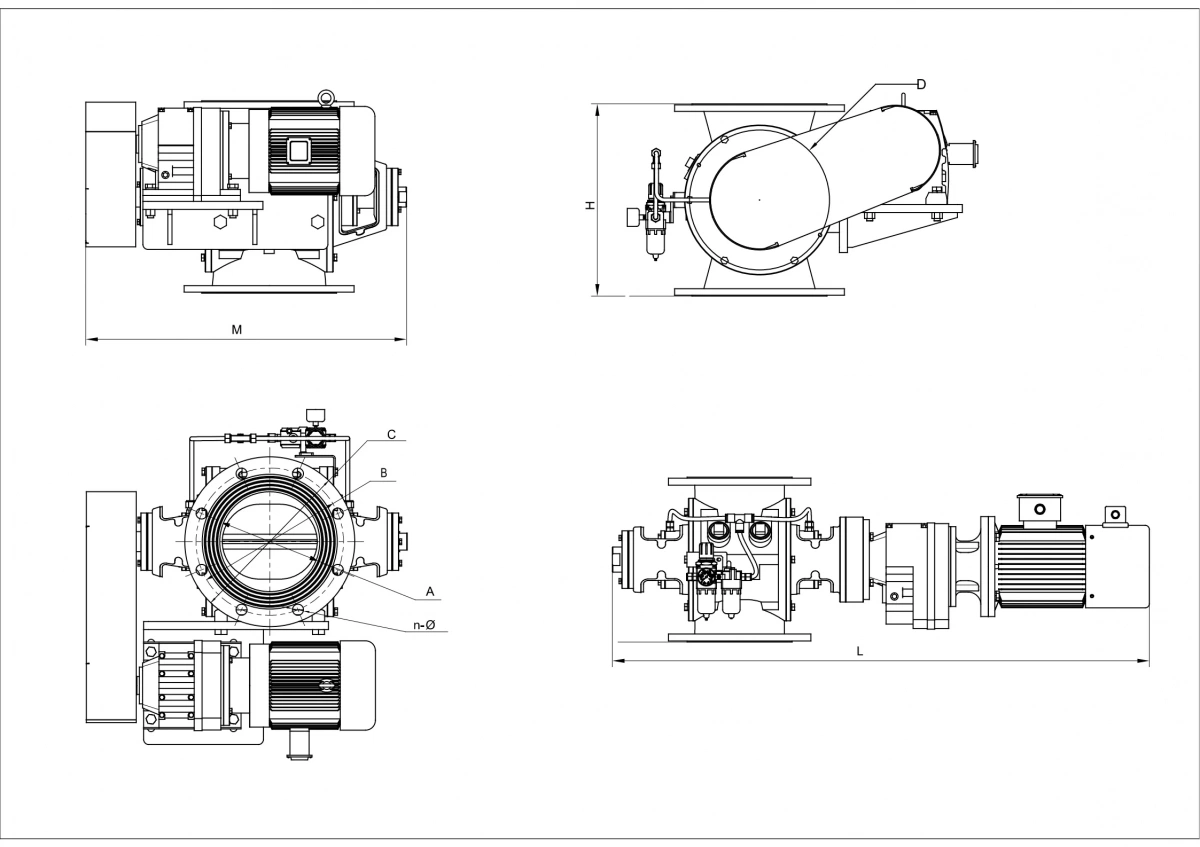

TECHNICAL PARAMETERS
| Type | Volume | Installation Dimension | OT | RPM (r/min) | Motor ( KW ) | |||||||
| L/rpm | ØA | ØB | ØC | ØD | H | L | M | N-Ø | ||||
| CVR/A-150 | 4L/r | 150 | 240 | 285 | 210 | 330 | 1006 | 498 | 8-Ø22 | Outboard bearings ≤300℃ | 3～33r | 0.75 |
| CVR/A-200 | 8L/r | 200 | 295 | 340 | 280 | 385 | 1097 | 528 | 1.1 | |||
| CVR/A-250 | 16L/r | 250 | 350 | 395 | 360 | 450 | 1121 | 608 | 12-Ø22 | 1.5 | ||
| CVR/A-300 | 24L/r | 300 | 400 | 445 | 350 | 480 | 1291 | 638 | 2.2 | |||
| CVR/A-350 | 40L/r | 350 | 470 | 520 | 460 | 550 | - | 788 | 16-Ø26 | 3.0 | ||
| CVR/A-400 | 46L/r | 400 | 515 | 565 | 480 | 600 | - | 810 | 16-Ø26 | 3.0 | ||
| CVR/A-450 | 66L/r | 450 | 565 | 615 | 550 | 650 | - | 754 | 20-Ø26 | 3.0 | ||
| CVR/A-500 | 110L/r | 500 | 620 | 670 | 580 | 680 | - | 1093 | 16-Ø22 | 4.0 | ||
| CVR/A-600 | 150L/r | 600 | 725 | 780 | 670 | 820 | - | 1294 | 20-Ø30 | 4.0 | ||
| Note: If match special flange, please let us know before production. | ||||||||||||
