Plastic Pellet Rotary Valve
FEATURES
· Standard valve manufactured in stainless steel
· Nonstandards valve manufactured in Hastelloy, Nickel Alloy, Titanium material
· Drilled flanges in accordance with DIN, ANSl, JIS standard
· Outboard bearing are standard
· High temperature execution up to 300°c
· Designed accordingly
OPTIONS AND ACCESSORIES
· 6 vanes, 8 vanes, 10 vanes rotor
· Rotor design: close end, radius pocket and adjustable-tip
· Interior coatings: tungsten, Teflon, ceramic powder, hard chromeAir purge shaft sealing
· Valve housing leakage gas venting
· Accessories: Drop-out box, speed monitor, vent box

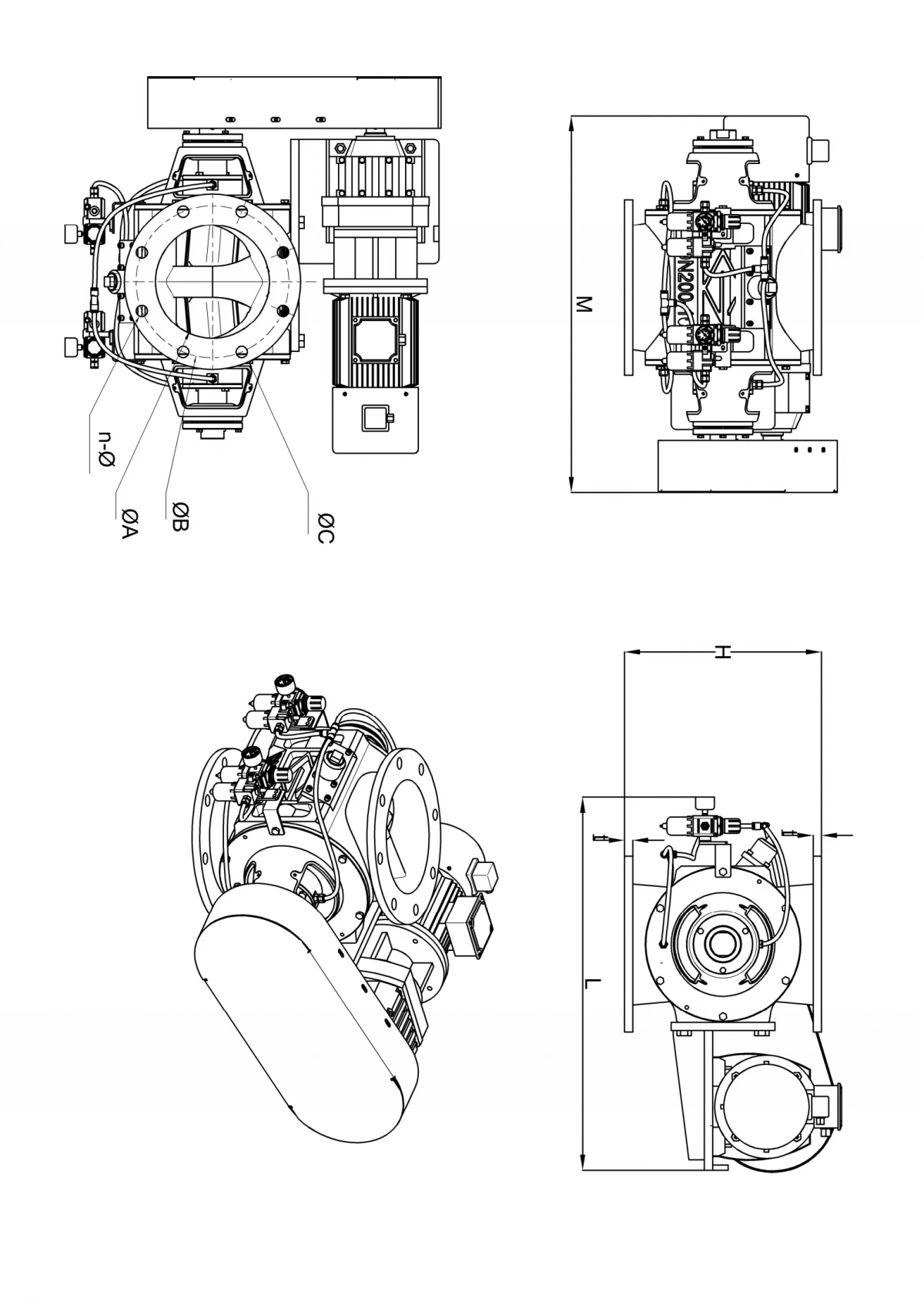

TECHNICAL PARAMETERS
| Type | Volume | ||||||||
| L/rpm | ØA | ØB | ØC | M | H | L | t | n-Ø | |
| CVG-200 | 6L/r | 220 | 295 | 340 | 728 | 380 | 788.1 | 16 | 8-Ø22 |
| CVG-250 | 15L/r | 270 | 350 | 405 | 751 | 450 | 813.1 | 16 | 8-Ø22 |
| CVG-300 | 30L/r | 320 | 400 | 470 | 832 | 600 | 896.9 | 20 | 12-Ø18 |
| Non standard flange connection, to confirm with our technical team. | |||||||||
